WHAT DOES THE BODY BRACE DO?
Modern cars like the Polo AW & other MQB A0 have a pretty stiff laser-welded bodyshell. Up front, the chassis is very rigid between the suspension tops, but at the rear there is much more chassis flex which negatively affects vehicle handling in hard use, especially with stiff suspension. That's why cars like the Golf Clubsport S gets a factory rear brace.

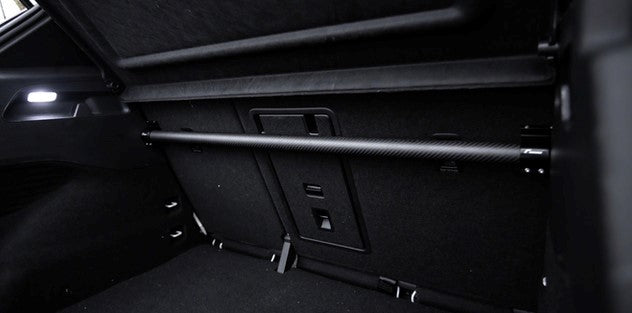

The new RacingLine Rear Body Brace solves this issue by locking the crucial hard points together.
The RacingLine Rear Body Brace uses solid billet aluminium mounts secured into the beautiful, ultra-stiff carbon fibre link bar drastically stiffening the rear of the chassis.
By reinforcing and tying the rear strut towers together, the brace helps to maintain proper suspension geometry under heavy cornering loads. Remove the bodyshell flex, and the suspension geometry can work as it was designed to do.
Despite the added stiffness, this improved handling performance comes without sacrificing any ride quality or introducing any additional noise, vibration, or harshness into the cabin
The clever design means that installation
POLO GTI AW
VWR810003
IMPORTANT:
Not to be used as a mounting point for seatbelts or race harnesses
PRECISION ENGINEERED FOR PERFECT PERFORMANCE.
Brackets locate into rear seat mounts, no drilling or cutting
All mounts are CNC 5-axis machined from solid billet
3K twill weave carbon fibre ultra-stiff 35mm link bar
FEA design maximises stiffness whilst keeping weight down
Aerospace-grade T6-6061 Aluminium bracketry used throughout
CONFIRMED APPLICATIONS
2017+
Thin, low-profile design means minimum impact on boot space and no effect on rear seat operation, up or down.
Clever design means fitting is quick and simple. Completely reversible without trace for removal.
No cutting, no drilling needed. By cleverly re-using the strongest parts of the body, there's no need to modify.
WHAT'S IN THE KIT?
2x Billet Mounting brackets
All required fitting hardware
